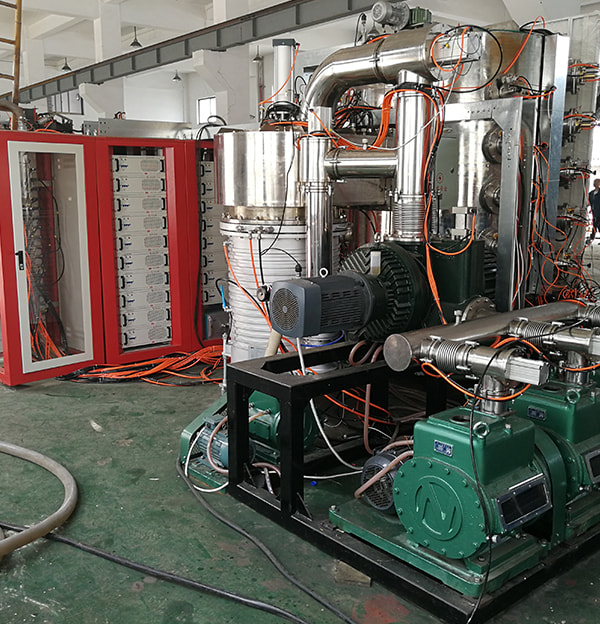

Anti-Finger Print Coating Machine

System Summary

Arc Discharge: An electric arc or arc discharge is an electrical breakdown of a gas that produces an ongoing electrical discharge. The current through a normally nonconductive medium such as air produces a plasma; the plasma may produce visible light. An arc discharge is characterized by a lower voltage than a glow discharge, and it relies on thermionic emission of electrons from the electrodes supporting the arc.
Multi-arc ion coatings can be deposited in a wide range of colors. The range of colors can be further enhanced by introducing reactive gases into the chamber during the deposition process. The widely used reactive gases for decorative coatings are nitrogen, oxygen, argon or acetylene. The decorative coatings are produced in a certain color range, depending on the metal-to-gas ratio in the coating and the structure of the coating. Both of these factors can be altered by changing the deposition parameters.
Prior to deposition, the parts are cleaned so the surface is free of dust or chemical impurities. Once the coating process has started, all the relevant process parameters are continuously monitored and controlled by an automatic computer control system.

• Substrate Material: Glass, Metal (carbon steel, stainless steel, brass), Ceramics, Plastic, Jewelry.

• Structure Type: Vertical structure/Horizontal structure, #304 Stainless Steel.

• Coating Film: Multi-functional metal film, composite film, transparent conductive film, reflectance-increasing film, electromagnetic shielding film, decorative film.

• Film Color: multi colors, gun black, titanium golden color, rose golden color, stainless steel color, purple color and other more colors.

• Film type: TiN, CrN, ZrN, TiCN, TiCrN, TiNC, TiALN and DLC.

• Consumables in production: Titanium, Chromium, Zirconium, Iron, alloy target.

APPLICATION:

 • Glassware, such as glass cup, glass lamps, glass artworks .

 • Table wares, like metal forks and knives.

 • Golf wares, like golf head, golf pole and golf balls.

 • Sanitary Products/bathroom wares.

 • Door handles & locks.

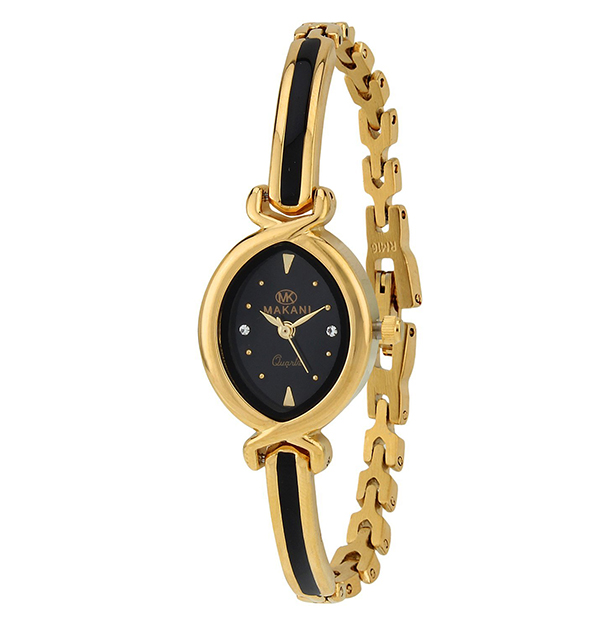

 • Watches parts, like watch case and belt.

 • Metal jewelry.

 • Large size sheet, plate, pipe, tube and so on. Like large stainless steel plate and furnitures.
